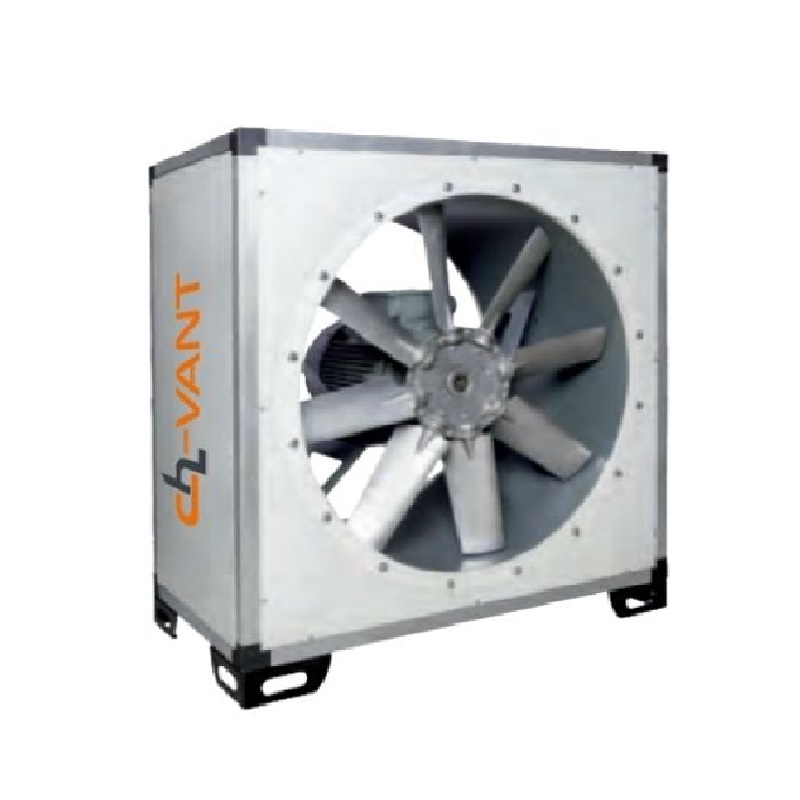

AKSİYEL HÜCRELİ DUMAN TAHLİYE FANLARI
CH-HDTF
Teknik Bilgiler
| Model | Voltaj Voltage (v) | Güç Power (kw) | Devir Speed (rpm) | Debi Air Flow (m³/h) | Fiyat |
|---|---|---|---|---|---|
| CH-HDTF 400 | 230/380 | 0,37 | 1400 | 5000 | - |
| CH-HDTF 450 | 230/380 | 0,37 | 1400 | 6000 | - |
| CH-HDTF 500 | 230/380 | 0,75 | 1400 | 8000 | - |
| CH-HDTF 560 | 230/380 | 0,75 | 1400 | 10500 | - |
| CH-HDTF 630 | 230/380 | 1,1 | 1400 | 13500 | - |
| CH-HDTF 710A | 230/380 | 1,5 | 1400 | 18500 | - |
| CH-HDTF 710B | 380 | 2,2 | 1400 | 20000 | - |
| CH-HDTF 800A | 380 | 2,2 | 1400 | 25000 | - |
| CH-HDTF 800B | 380 | 3 | 1400 | 30000 | - |
| CH-HDTF 900A | 380 | 4 | 1400 | 40000 | - |
| CH-HDTF 900B | 380 | 5,5 | 1400 | 50000 | - |
| CH-HDTF 1000A | 380 | 7,5 | 1400 | 55000 | - |
| CH-HDTF 1000B | 380 | 11 | 1400 | 60000 | - |
| Model | A | B | C | D |
|---|---|---|---|---|
| CH-HDTF 400 | 640 | 790 | 450 | 400 |
| CH-HDTF 450 | 690 | 840 | 450 | 450 |
| CH-HDTF 500 | 740 | 890 | 520 | 500 |
| CH-HDTF 560 | 800 | 950 | 520 | 560 |
| CH-HDTF 630 | 870 | 1020 | 620 | 630 |
| CH-HDTF 710 | 950 | 1100 | 620 | 710 |
| CH-HDTF 800 | 1040 | 1190 | 670 | 800 |
| CH-HDTF 900 | 1140 | 1290 | 770 | 900 |
| CH-HDTF 1000 | 1230 | 1380 | 810 | 1000 |

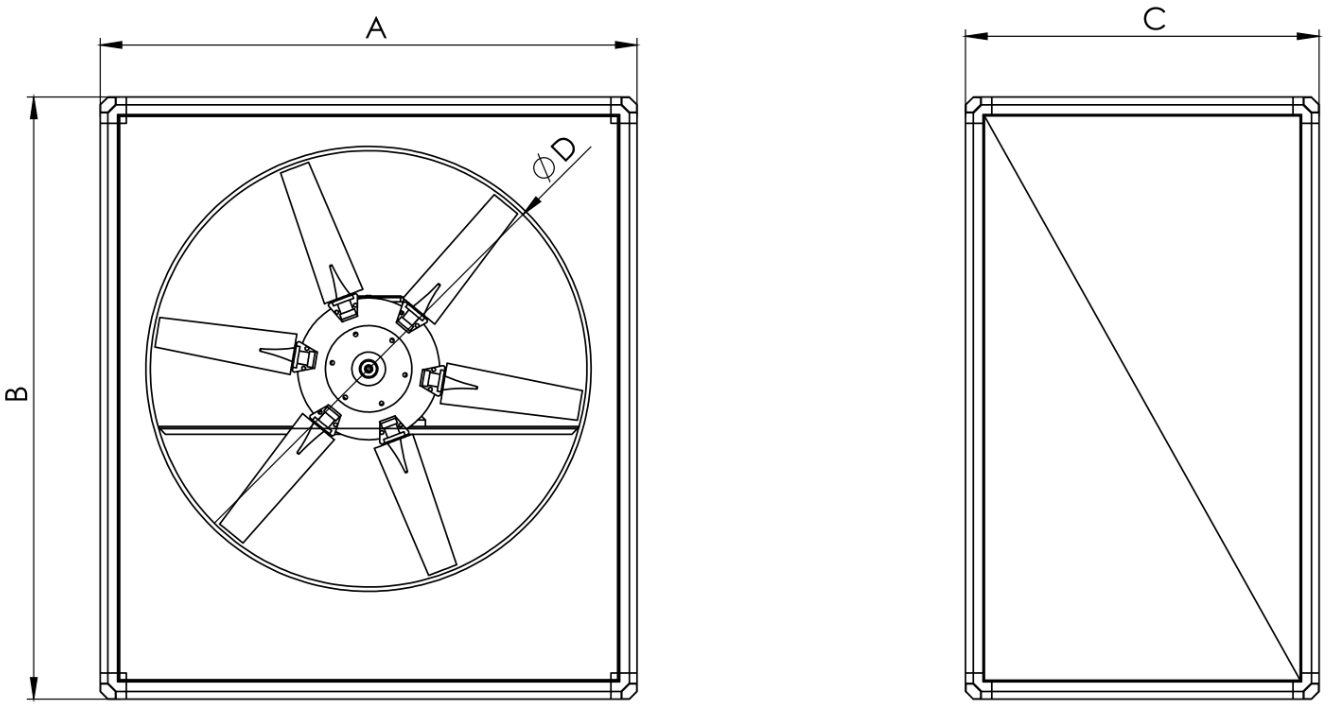

TEKNİK ÖLÇÜLER
