GERİYE EĞİK SEYREK KANATLI PLUG FANLAR
CH-RK
Teknik Bilgiler
| Model | Güç Power (kW) | Devir Speed (rpm) | Max Debi Air Flow (m³/h) | Fiyat |
|---|---|---|---|---|
| CH-RK 280 | 0,25 | 1410 | 5000 | - |
| CH-RK 315 | 0,25 | 1410 | 6500 | - |
| CH-RK 355 | 0,37 | 1390 | 7500 | - |
| CH-RK 400 | 0,55 | 1365 | 10000 | - |
| CH-RK 450 | 1,1 | 1440 | 13000 | - |
| CH-RK 500 | 2,2 | 1445 | 16000 | - |
| CH-RK 560 | 3 | 1445 | 19000 | - |
| CH-RK 630 | 5,5 | 1450 | 25000 | - |
| CH-RK 710 | 7,5 | 1470 | 34000 | - |
| Model | A | B | C |
|---|---|---|---|
| CH-RK 280 | 280 | 130 | 205 |
| CH-RK 315 | 315 | 150 | 235 |
| CH-RK 355 | 355 | 165 | 260 |
| CH-RK 400 | 400 | 185 | 295 |
| CH-RK 450 | 450 | 210 | 340 |
| CH-RK 500 | 500 | 235 | 370 |
| CH-RK 560 | 560 | 260 | 415 |
| CH-RK 630 | 630 | 290 | 475 |
| CH-RK 710 | 710 | 315 | 525 |

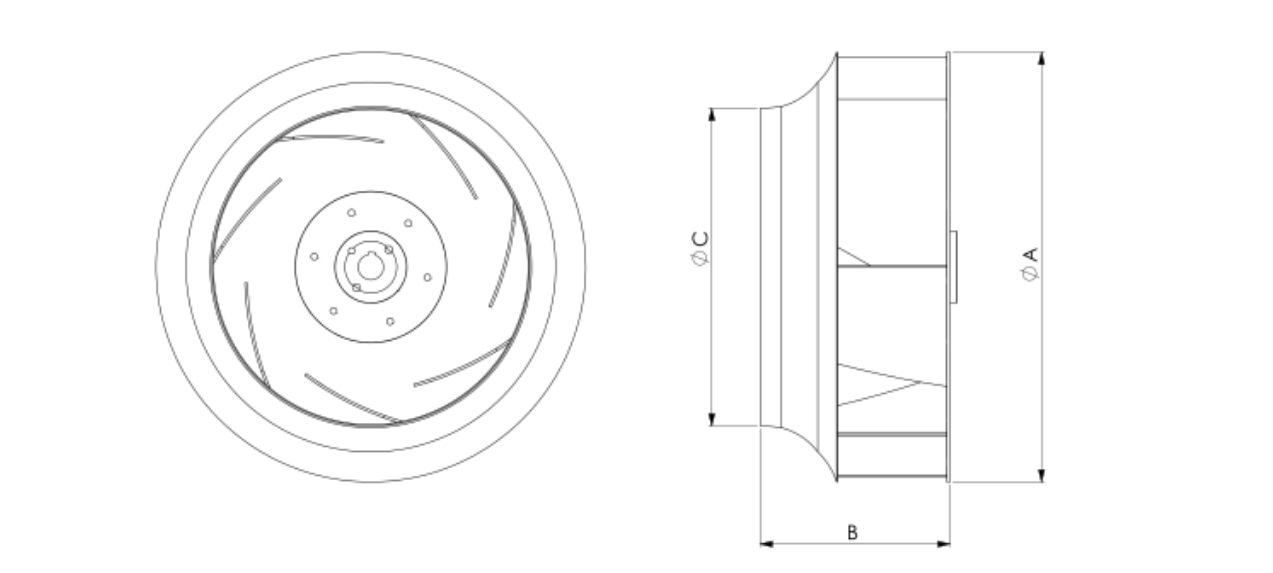

TEKNİK ÖLÇÜLER
